Executive Summary:

A publicly traded US oil and gas company faced costly, unplanned equipment downtime due to catastrophic transmission failures in onshore fracking operations. InXiteOut developed a custom, end-to-end machine learning system on Google Cloud Platform (GCP) to analyze high-frequency sensor telemetry. The solution predicts failures 2 to 4 days in advance, successfully detecting 89% of genuine anomalies. Deployed in live operations, the system enabled a shift from reactive to proactive maintenance, reducing unplanned downtime by 30%-40% and delivering strong ROI.

Client Context

A publicly traded US oil and gas company faced significant production downtime and escalating repair costs due to catastrophic transmission failures in its high-pressure onshore fracking equipment. Without an early warning system, breakdowns occurred without notice, causing large-scale process disruptions.

The Challenge

• Reactive maintenance: Failures were only detected after they occurred, preventing preemptive action.
• Unmanageable telemetry data: Real-time telemetry arrived as high-frequency, non-uniform sub-second streams, making manual interpretation at scale impossible.
• Lack of diagnostic visibility: When breakdowns did happen, engineers had no data-driven way to quickly identify contributing factors and act.

The client needed a machine learning solution to monitor real-time sensor telemetry data and generate actionable, advance warnings for equipment failures.

The InXiteOut Approach

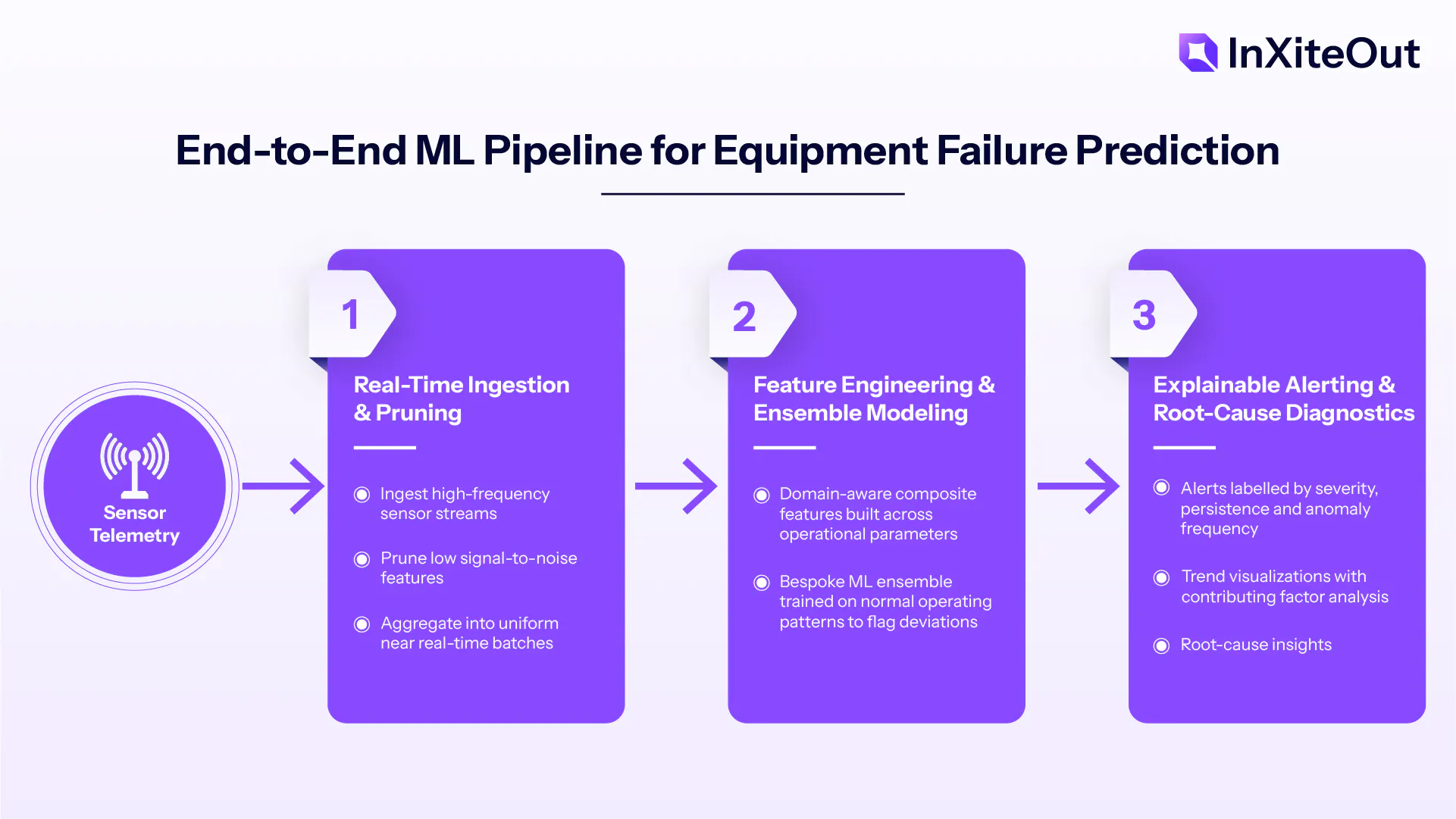

We built an end-to-end, custom-designed machine learning system to predict equipment failures days in advance. The solution was developed in three core phases:

Real-Time Telemetry Ingestion and Pruning

Streaming, high-frequency sensor telemetry was ingested into GCP via an event-queuing agent. Irrelevant features with low signal-to-noise ratios were pruned early in the pipeline, and the remaining data was aggregated into uniform, near real-time batches to enable downstream processing.

Feature Engineering and Ensemble Modeling

The data was enriched with engineered features that captured composite relationships between operational parameters, incorporating deep domain expertise. We developed a bespoke machine learning model ensemble trained specifically on normal operating patterns to detect deviations. The entire algorithm pipeline was then retroactively backtested for rigorous validation prior to production deployment.

Explainable Alerting and Root-Cause Diagnostics

We engineered a post-processing mechanism to generate explainable alerts labeled by severity, persistence, and anomaly frequency. When failures are predicted, the system provides field engineers with trend visualizations, contributing factors, and root-cause insights to enable immediate, proactive maintenance.

Technology Stack

• Google ETL & ML Ecosystem (Dataflow, BigQuery, PubSub, CloudStorage)
• Looker

Benefits Delivered

The solution was successfully integrated into the client's live fracking operations, driving a complete shift from reactive repairs to proactive equipment management:

• 30% to 40% Reduction in Unplanned Downtime: Significantly decreased process disruptions, delivering an attractive ROI while improving overall on-site safety.
• Strategic Advance Warnings: Provided 2 to 4 days of advance notice before catastrophic failures, enabling proactive and optimized maintenance scheduling.
• High-Precision Failure Detection: Successfully detected 89% of all genuine equipment failures (recall) while maintaining an acceptable, low-noise alert volume (precision) through carefully tuned thresholds.
• Actionable Explainable AI: Delivered severity-based, tiered alerts equipped with root cause analysis and trend visualization, giving field engineers the exact diagnostic data needed to act quickly.
